Description

Airflow iCON 30 Low Energy Axial Extractor Fan – 72687257 Details

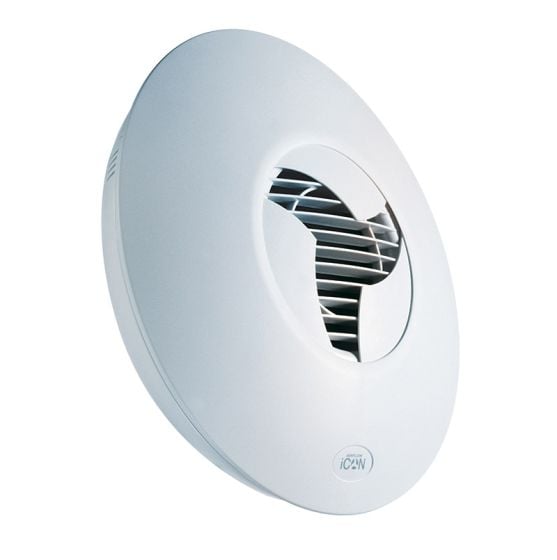

The iCON 30 Low Energy is quiet, powerful and designed for recessed or surface mounting in walls or ceilings in larger toilets, bathrooms and utility rooms.
The quiet, powerful, mixed centrifugal/axial fan has been designed with simplicity in mind. The twist on/off cover requires only a single side entry fixing screw.
The optional snap-in module is quick to fit and wire. Tiling is a breeze with the circular cover flange, reducing the need to make good and one wipe and the cover is clean. Stylish, slim and unobtrusive in walls or ceilings. Unique iris shutter, prevents back draughts, operates silently and helps reduce noise ingress. A choice of interchangeable control modules match fan to installation requirements. Splash proof, tiling friendly, wipe clean cover.
Features

Flow rate up to 33 l/sec (121 m3/hr)
Low energy, quiet in use
Complies with latest Building Regulations
Surface or recessed mounting
Perfect for longer duct runs
Unique iris shutter, prevents backdraughts, operates silently
Interchanngeable control modules match fan to installation requirements
Circular design, no squaring up
3 year warranty
Power (W): 10.7
Duct diameter: 100mm
Supply Voltage: 230V / 1ph / 50 Hz
Ingress protection rating: IPX3
Max ambient temperature: 40°C
Dimensions: 225 x 225 x 144mm (HxWxD)
